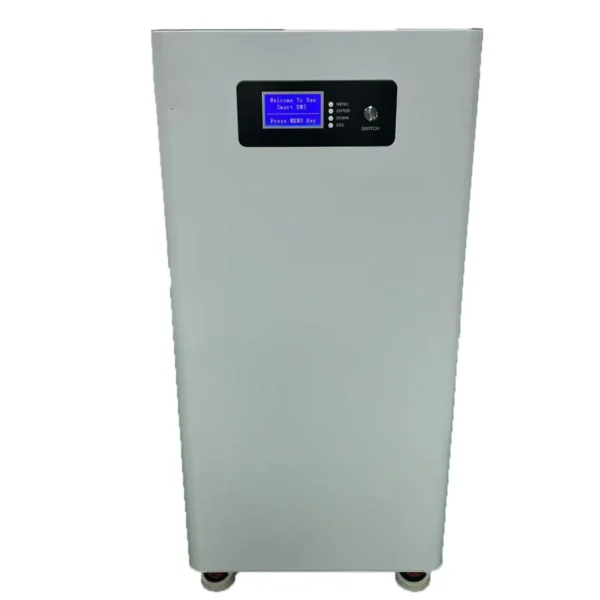

HFH Seplos 51.2V 280Ah Lifepo4 Battery Home Solar Energy Storage System 48V Battery Pack 15kw Lithium Ion Batteries

促销中
HFH Seplos 51.2V 280Ah Lifepo4 Battery Home Solar Energy Storage System 48V Battery Pack 15kw Lithium Ion Batteries

HFH Seplos 51.2V 280Ah Lifepo4 Battery Home Solar Energy Storage System 48V Battery Pack 15kw Lithium Ion Batteries

原价为：$1,090.80。当前价格为：$909.00。









Product Description

Product Description

Product name
with DIY 48V 16S 10E New Version movable battery box lifepo4 280ah
Configuration
1P16S
Nominal Voltage(V)
51.2V
Nominal Capacity(Ah)
280Ah @0.5C discharge current 25±2℃
Nominal Power(wh)
14.3kwh
Dimension(mm)
750*440*251mm
Weight (kg)
DIY BOX=28.5KG,DIY BOX with cells=112±5kg
Discharg Cut-off Voltage(V)
41.6v
Charge Voltage(V)
57.6v
Continuously Charge/Discharge Current(A)
140A@25±2℃(Recommended)
Max Standard charge/discharge Current
200A@25±2℃
Standard charge/discharge Current
140A@25±2℃(Recommended)
Working Temperature
0-50℃(Charge)
(-10–50℃)Discharge
(-20–55℃)Storage
SOC Range
5%-100%
Recommended SOC Range
15%-95%
Communication Interface
CAN(Default) or RS485
Humidity
10%-85%
IP level
IP 20
Certificates
CE, ROHS, MSDS, UN38.3
Parts List
* 1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
* 1 * 48V 200A 16S SEPLOS BMS
* 1 * 58V 400A Fuse
* 4 * Handle
* 2 * PCB Board for BMS and Cell Connection
* 3 * Upper and Lower Latch lock
* 1 * LCD Screen
* 1 * LCD Screen Sticker
* 4 * Button Cap
* 3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
* 2 * Battery Terminals (P+ Terminal and P- Terminal)

Other components includes
* 6 * Copper bus bars (BMS connection)
* 15 * Aluminum bus bars (Cell connection)
* 10 * Epoxy sheet (Between cell and the case)
* 26 * EVA Tape (Between cells)
* 1 * PC sheet (Top cover)

Screws Details
* 12 * Phillip Hex M4 * 8mm (PCB board fix)
* 9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
* 7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
* 10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
* 12 * Phillip Pan M5 * 10mm (Latch fix)
* 16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
* 42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
* 4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
* 5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
* 8 * Phillip Round M5 * 10mm + Washer

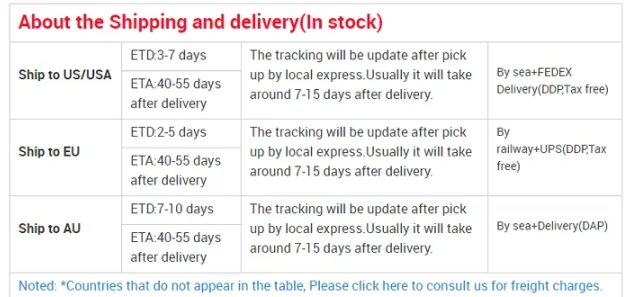

HFH has established US and EU STOCK! 2-5 Day DDP Fast Delivery European and American Overseas Warehouses.




Click here to contact HFH to get the best free shipping price include tax ship from EU US.!!



2024-11-01 21:40:41.jpg
2024-11-01 21:40:49.jpg
2024-11-01 21:40:58.jpg
2024-11-01 21:41:03.jpg
2024-11-01 21:41:13.jpg
undefined
undefined
undefined
undefined

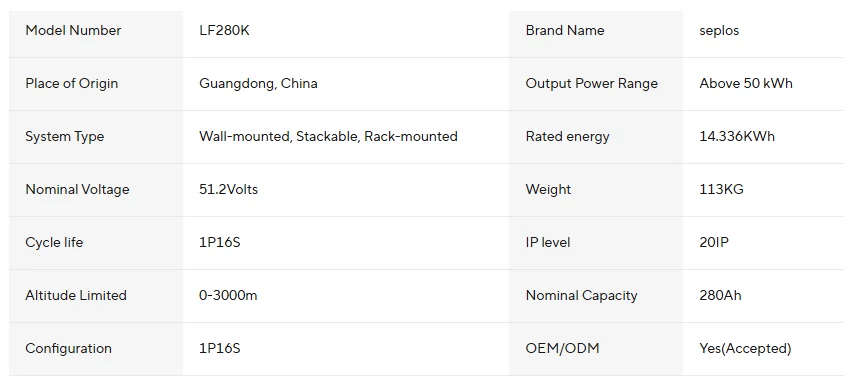

Specification
item value
System Voltage 51.2 V
Output Power Range 10~20 kWh
Grid connection Off grid
Battery Type LiFePO4
System Type Rack-mounted
Model Number HFH
Brand Name HFH
Place of Origin China
Dimension (L*W*H) 897*416*237mm
Weight 140kg
Type Split
Communication Port CAN
Protection Class Ip21

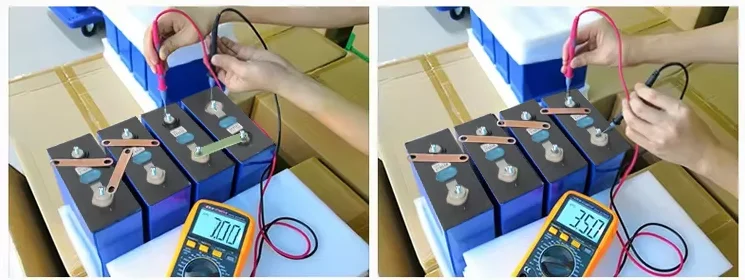

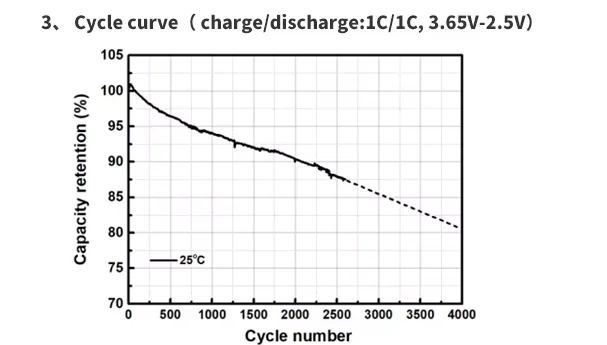

Battery Reliability Test

Battery Reliability Test

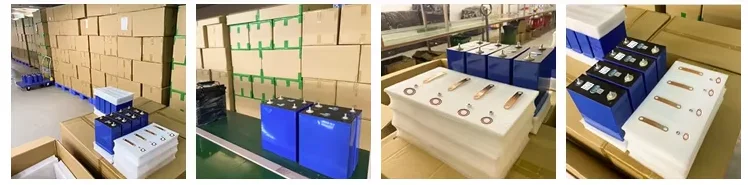

Before leaving the factory, we will have professionals to test the voltage and internal resistance twice.

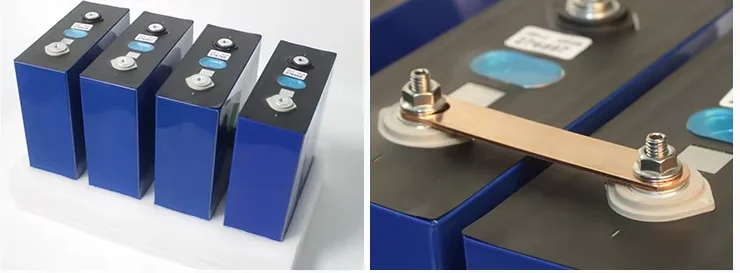

Make sure you receive a top quality, brand new original QR code battery cells.↓↓
20250203174152.png20250203174209.png20250203174224.png20250203174239.png20250203174256.png20250203174704.png20250203174728.png20250203174744.png20250203174841.png20250203174944.png20250203175021.png20250203175048.png20250203175116.png20250203175141.png_20250129







Company Introduction
Shenzhen HFH Technology Co., LTD. is battery & battery pack manufacture with several years experience. we had made a lot of customized battery project for Australia, Netherland, Germany, Korea, India, Turkey, Colombia etc countries. we’re looking for more business partner and hope to build up mutul benefit and long term cooperation with you.

FAQ
1. who are we?
We are based in Guangdong, China, start from 2021,sell to Mid East(40.00%),Southeast Asia(21.00%),North America(10.00%),South America(10.00%),South Asia(3.00%),Central America(3.00%),Western Europe(3.00%),Eastern Europe(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Africa(2.00%),Oceania(1.00%),Eastern Asia(1.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Lithium Ion Battery Cells,Lifepo4 Battery Cells,Lifepo4 Battery Pack,Lithium Ion Battery Pack

4. why should you buy from us not from other suppliers?
make battery pack as per customers requirement. good quality and professional solution. MOQ is 1pcs at least.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English,Chinese
